Light-Steel Metal Structure Warehouse Project Study
Using Q355 Grade Steel & ASTM Standards

This study outlines the design, engineering, and implementation of a light-steel warehouse in Madagascar using Q355 grade steel (Chinese standard GB/T 1591) aligned with ASTM standards (e.g., A572, A36). The focus is on structural integrity, cost efficiency, and compliance with international norms.

---

1. Material Specifications

Q355 Steel Properties (GB/T 1591):

• Yield Strength: 355 MPa (min)

• Tensile Strength: 470–630 MPa

• Elongation: ≥21%

• Equivalent ASTM Grade: Comparable to ASTM A572 Grade 50 (Yield: 345 MPa) but with slight variations in chemical composition (e.g., higher manganese content).

Key ASTM Standards:

• ASTM A572 (Grade 50): For high-strength, low-alloy steel.

• ASTM A36: General structural steel (compatible for non-critical components).

• ASTM A123: Hot-dip galvanizing for corrosion resistance.

• ASTM A325: Structural bolts for connections.

Compatibility Strategy:

• Use Q355 steel for primary framing (beams, columns) but verify compliance with ASTM A572 via mill certificates or third-party testing.

• For secondary components (bracing, purlins), combine with ASTM A36 for cost savings.

---

2. Structural Design Considerations

a. Load Calculations

• Dead Load: Weight of steel structure, cladding, and fixtures.

• Live Load: 0.25–0.5 kN/m² (per ASCE 7).

• Wind Load: 150–200 km/h cyclonic winds (Madagascar-specific). Use ASCE 7-22 or Eurocode EN 1991-1-4 for wind pressure calculations.

• Seismic Load: Low-to-moderate seismic zone (Zone 2A per IBC).

b. Framing System

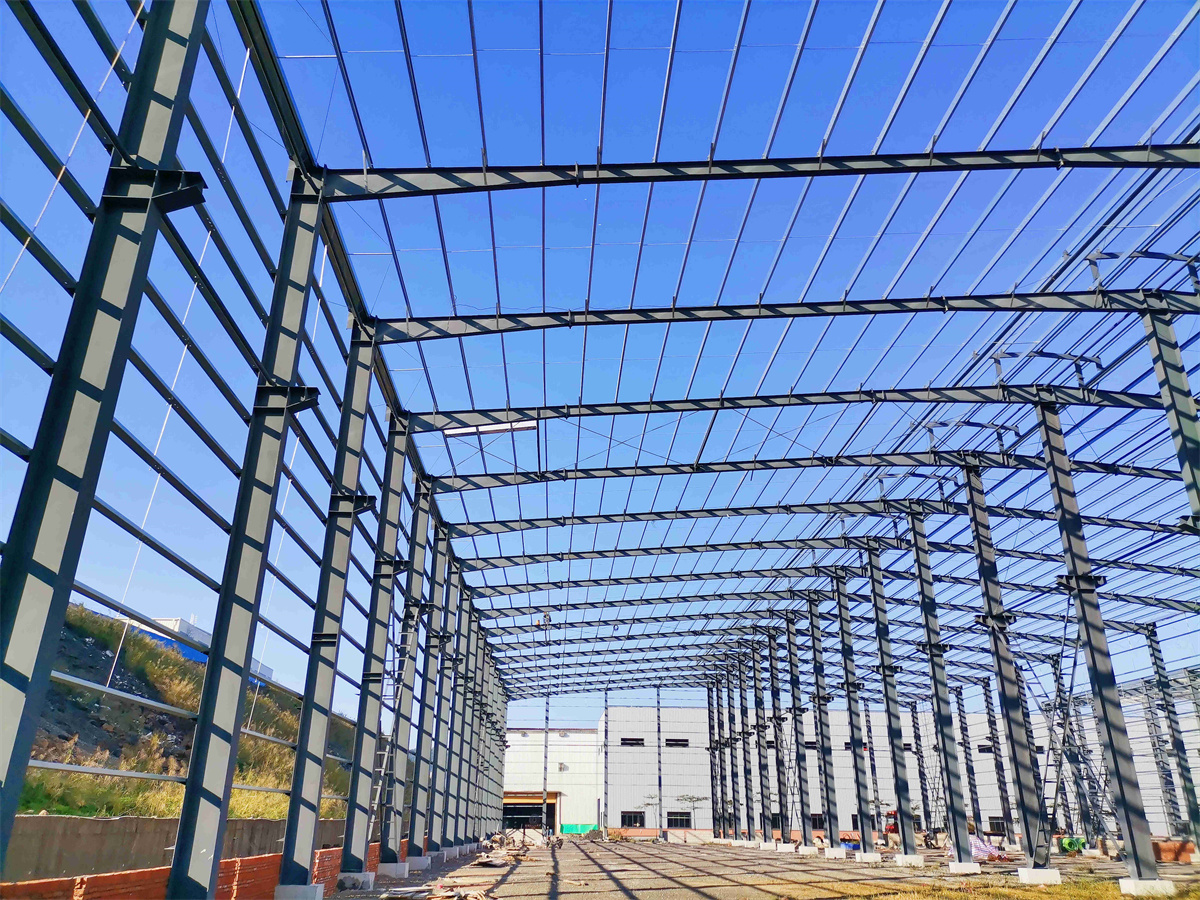

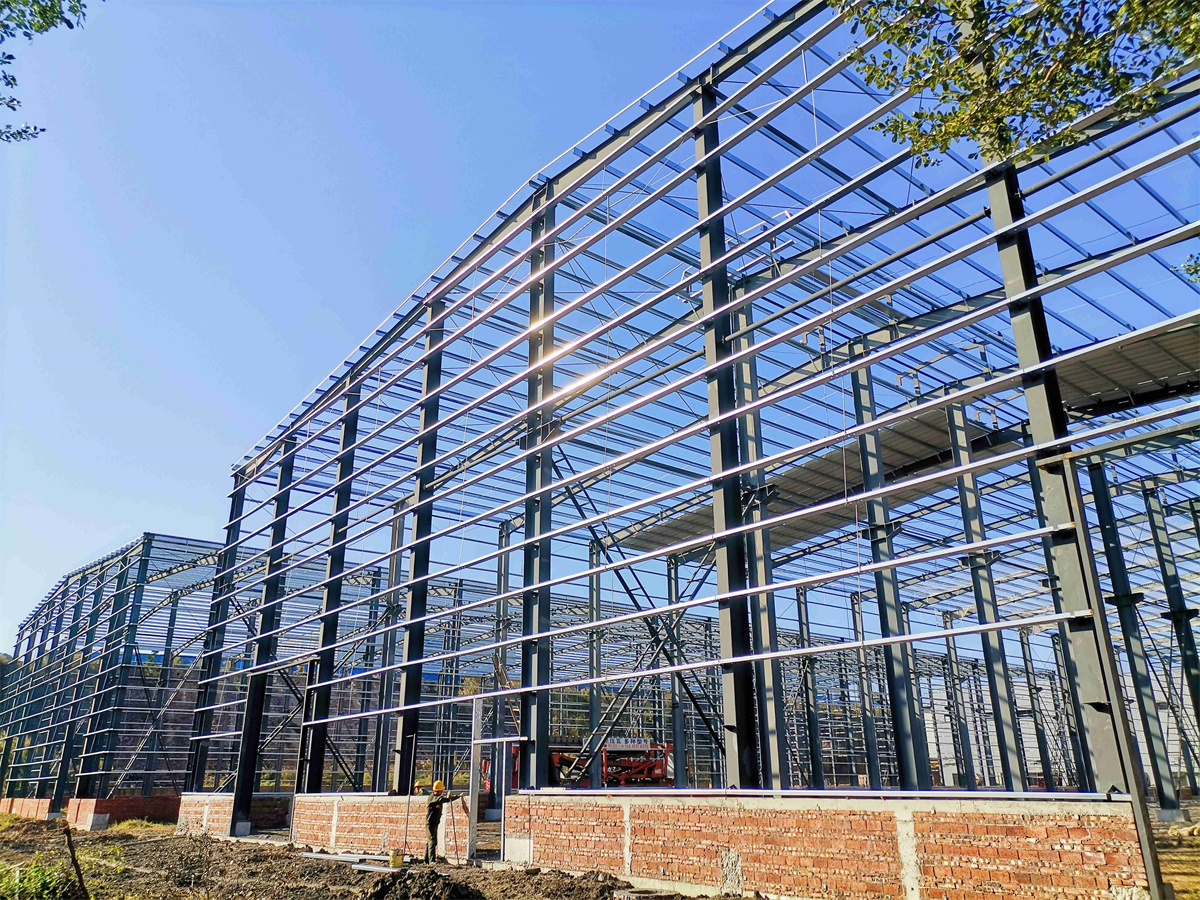

• Primary Frame: Rigid steel frames (Q355 columns/beams) with bolted/welded connections.

• Secondary Elements: Cold-formed Z/C purlins (ASTM A1003) for roof/wall support.

• Bracing: Diagonal steel rods (ASTM A36) for lateral stability.

c. Connection Design

• Use ASTM A325 bolts or fillet welds (AWS D1.1 standards).

• Pre-engineered connections to minimize onsite labor.

---

3. Corrosion Protection

• Galvanizing: Hot-dip galvanize Q355 steel per ASTM A123 (coating thickness: 85–100 µm).

• Coatings: Apply epoxy/polyurethane paints in coastal areas (e.g., Toamasina).

• Design: Sloped roofs and gutters to prevent water pooling.

---

4. Compliance & Testing

• Material Certification: Ensure Q355 mill certificates match ASTM A572 Grade 50 mechanical properties.

• Third-Party Testing:

  • Tensile strength and Charpy V-notch tests (ASTM A370).

  • Weld inspections (UT/RT per AWS).

• Local Codes: Align with Malagasy cyclone-resistant codes (e.g., reinforced foundations).

---

5. Cost & Procurement

a. Material Sourcing

• Q355 Steel: Import from China (e.g., Baowu Group) or source via Madagascar’s Toamasina port.

• ASTM-Compliant Bolts/Fasteners: Import from South Africa/Europe.

• Savings: Q355 is ~10–15% cheaper than ASTM A572 in bulk.

b. Budget Breakdown (5,000 sq.m. Warehouse):

Component	Cost Estimate
Q355 Steel Frame	120,000–120,000–150,000
Cladding (Sandwich Panels)	80,000–80,000–100,000
Foundations	50,000–50,000–70,000
Labor (Local/Int’l)	60,000–60,000–90,000
Contingency (10%)	30,000–30,000–40,000
Total	340,000–340,000–450,000

---

6. Sustainability & Innovation

• Recycled Steel: Use 30% recycled content in Q355 (if available).

• Solar Integration: Lightweight roof design supports PV panels (50 kW system).

• Prefabrication: Offsite fabrication reduces waste and speeds up construction.

---

7. Risk Mitigation

• Supply Chain: Dual sourcing for Q355 (China + local backup).

• Corrosion Warranty: 25-year coating warranty from suppliers.

• Cyclone Testing: Wind tunnel modeling for cladding/frame joints.

---

8. Project Timeline

• Design & Approval: 2–3 months (incl. ASTM compliance checks).

• Fabrication: 3–4 months (offsite in China).

• Construction: 4–5 months (avoiding Nov–Apr cyclone season).

---

9. Key Recommendations

• Partner with a pre-engineered building (PEB) supplier experienced in Q355/ASTM hybrid projects.

• Train local teams on ASTM welding/bolting standards.

• Use BIM (e.g., Tekla) to detect clashes and optimize steel usage.
